Autel Gbox G-BOX3 Acessory Tool Benz & BMW Adapter Gbox3 Mercedes Benz All Key Lost Tool Used With Maxiim IM608S II / IM608 PRO II / IM608 PRO / IM608 / IM508S / IM508

Description

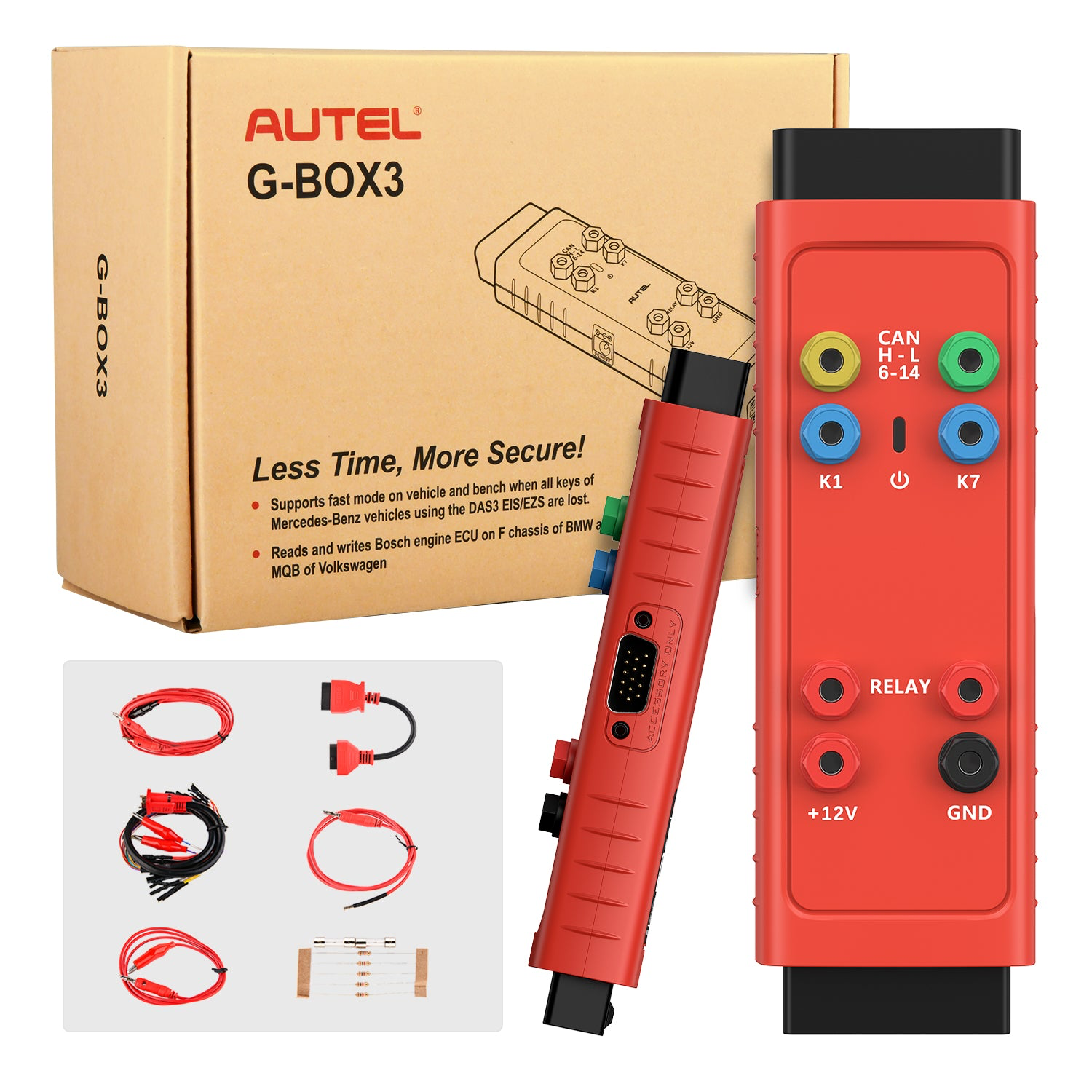

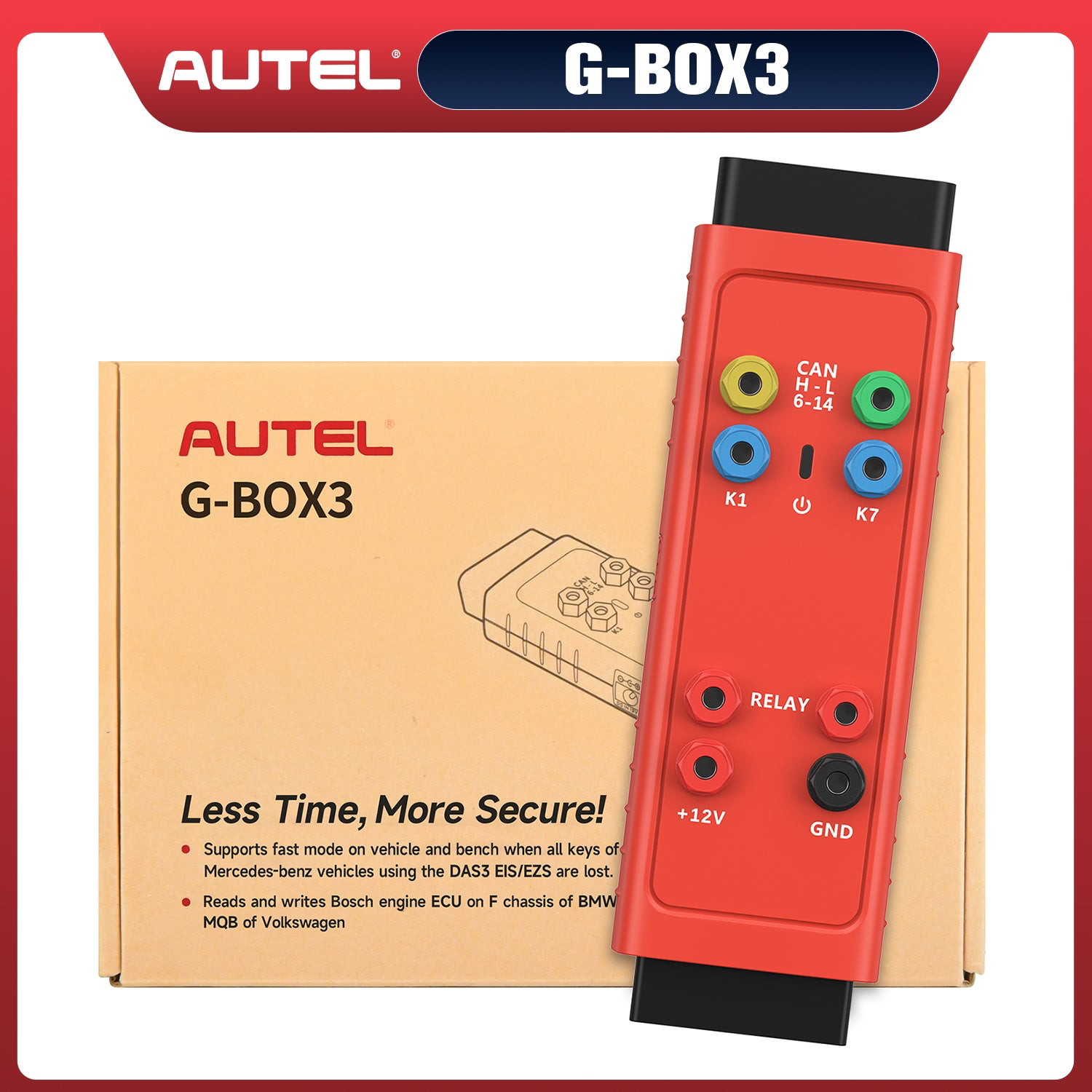

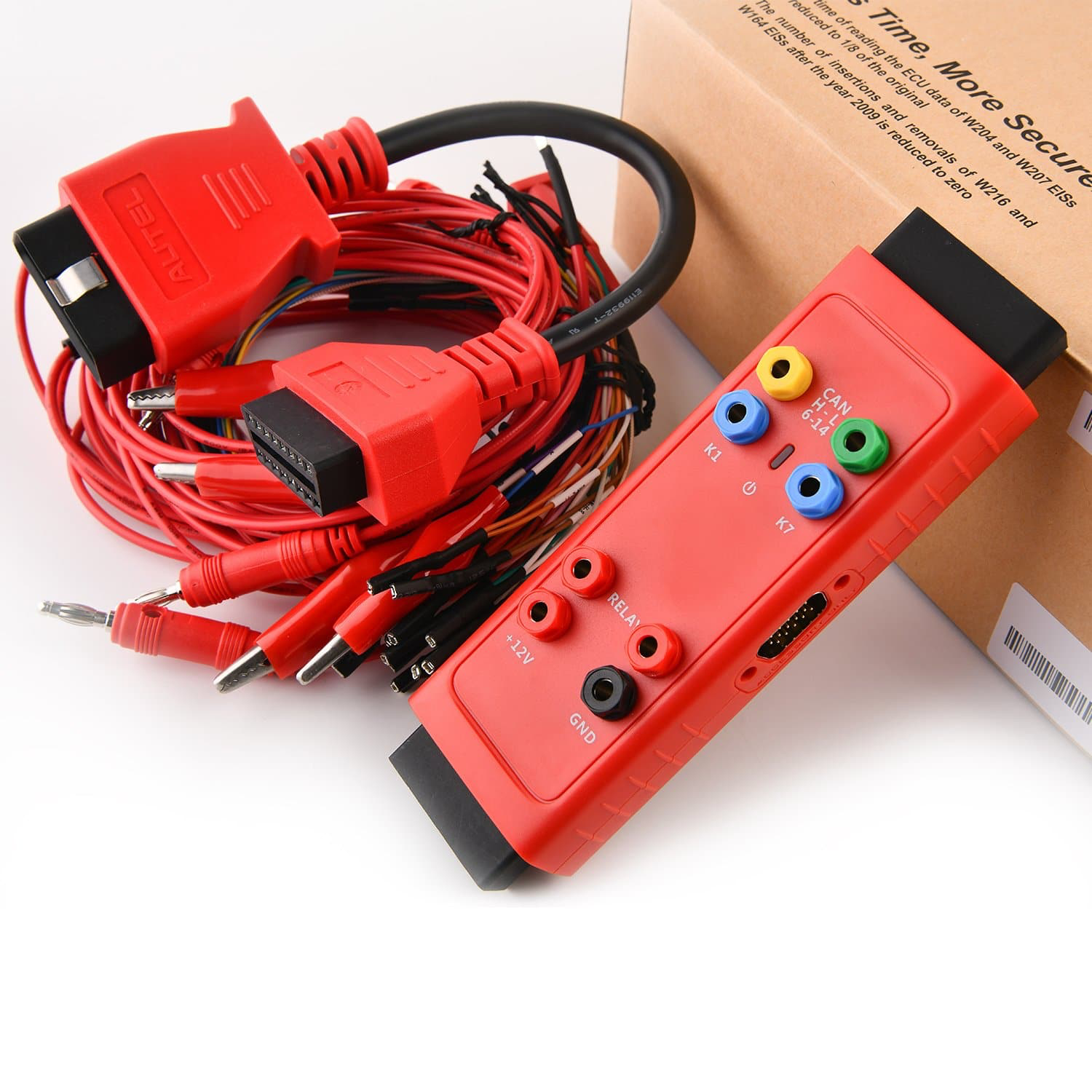

Autel G-BOX3 Accessory Tool

• The Autel G-BOX3 is designed to be used on for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to save time for reading the ECU data from W204 and W207 EISs by over 85%.
• The G-BOX3 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX3 reduces the time needed and eliminates the process of insertion and removal.
• The G-BOX3 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
• The G-BOX3 is compatible with the Autel’s advanced diagnostic tablets support IMMO and key programming functions.

Autel G-BOX3 Main Features:

1. For Mercedes Benz All Keys Lost, Faster Password Calculation

2. Used with MaxiIM IM608S II / IM608 PRO II / IM608 PRO / IM608 / IM508S / IM508

3. Used for Faster Mercedes ECU data and EIS password calculation

4. For Mercedes DAS3 can EIS / EZS all keys lost

5. Reduce time reading W204 ECU data & W207 EIS by over 85%

6. No need to remove and reinsert the key for W221 & W164 after 2009 models

7. For BMW DME / DDE ISN reading and writing in boot mode

8. G-BOX3 is compatible with both the Autel MaxiIM IM608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400

G-BOX2 VS GBOX-3

• G-BOX2 makes Mercedes all keys lost faster, GBOX-3 makes it 4x/8x faster
• GBOX-3 offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 ECUs and supports on vehicle.

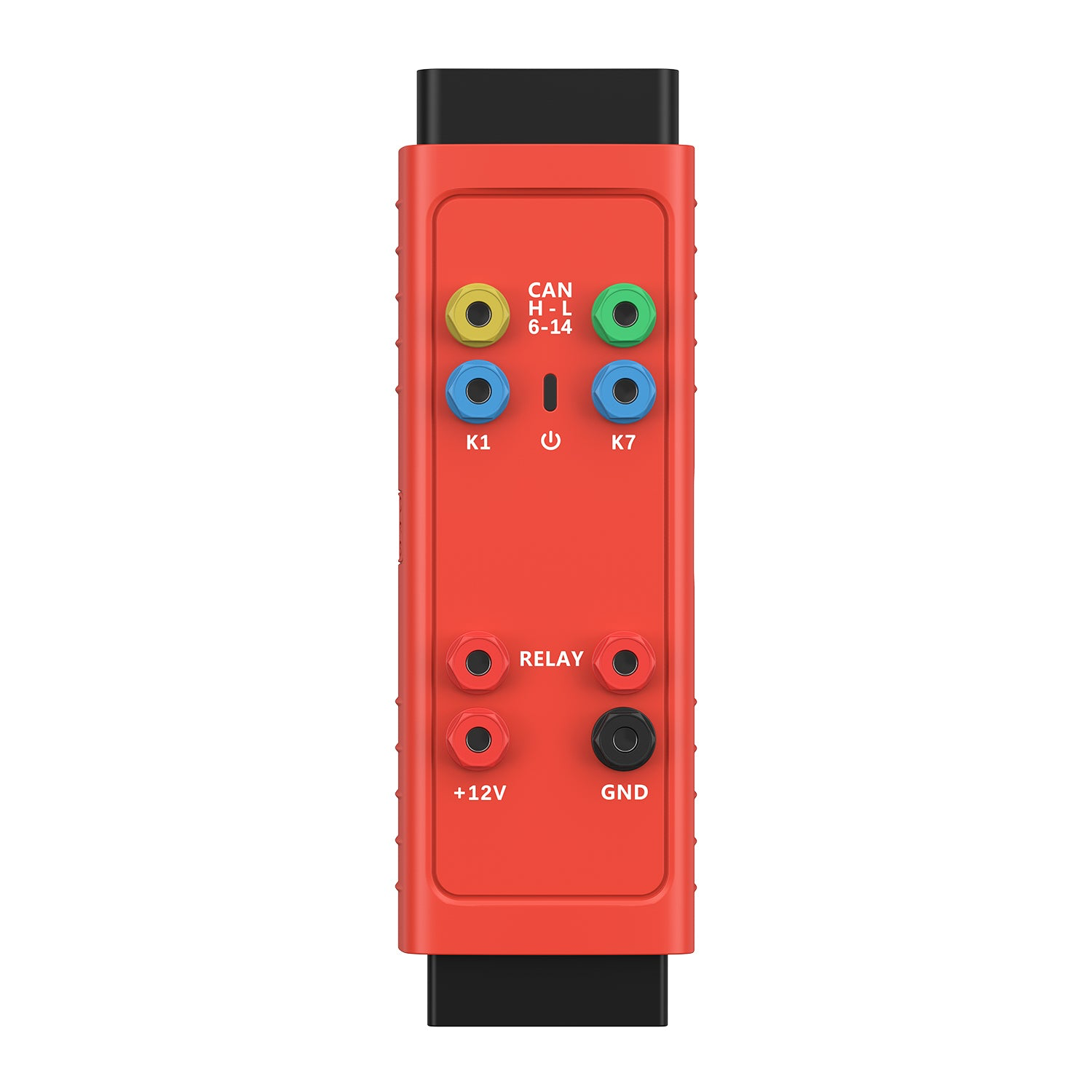

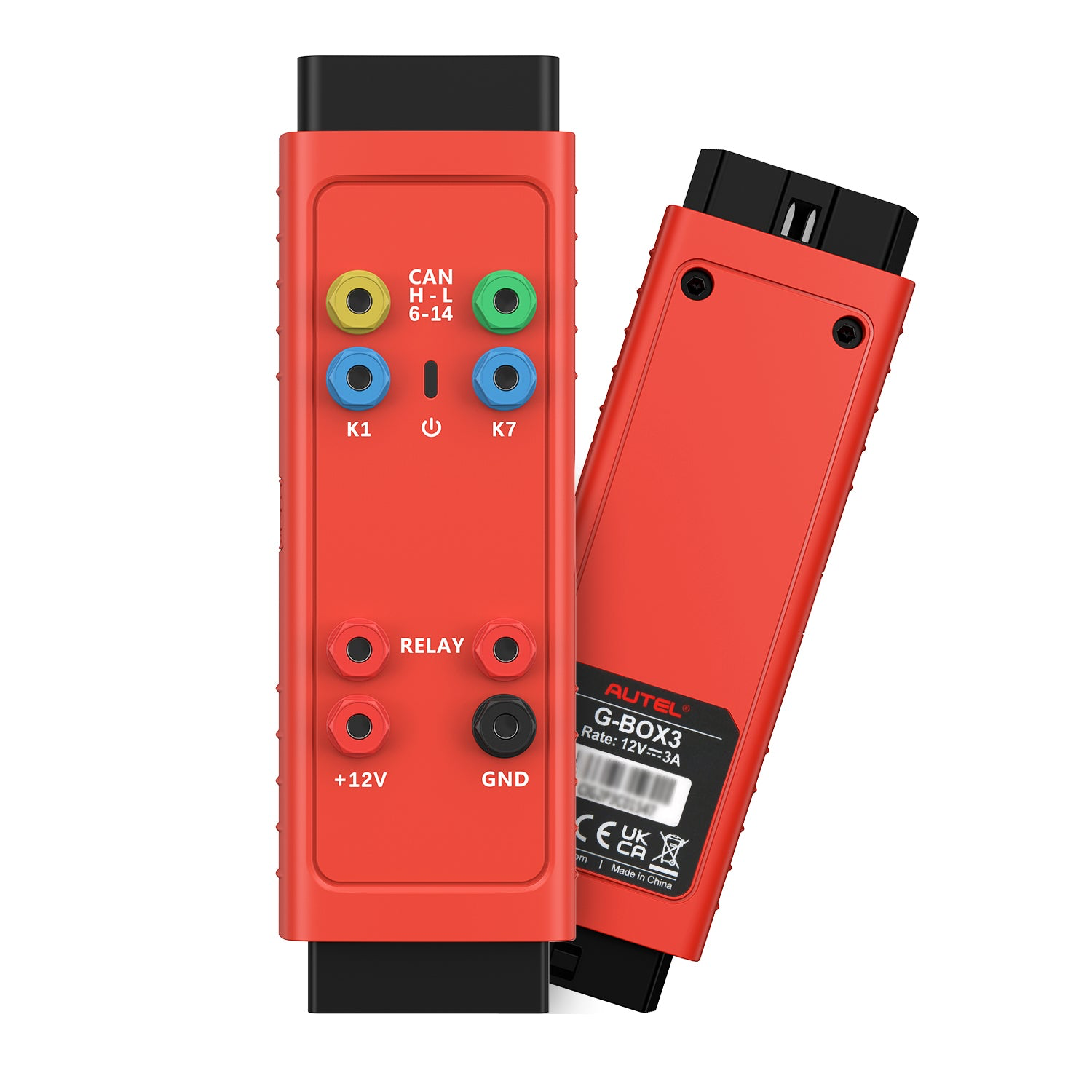

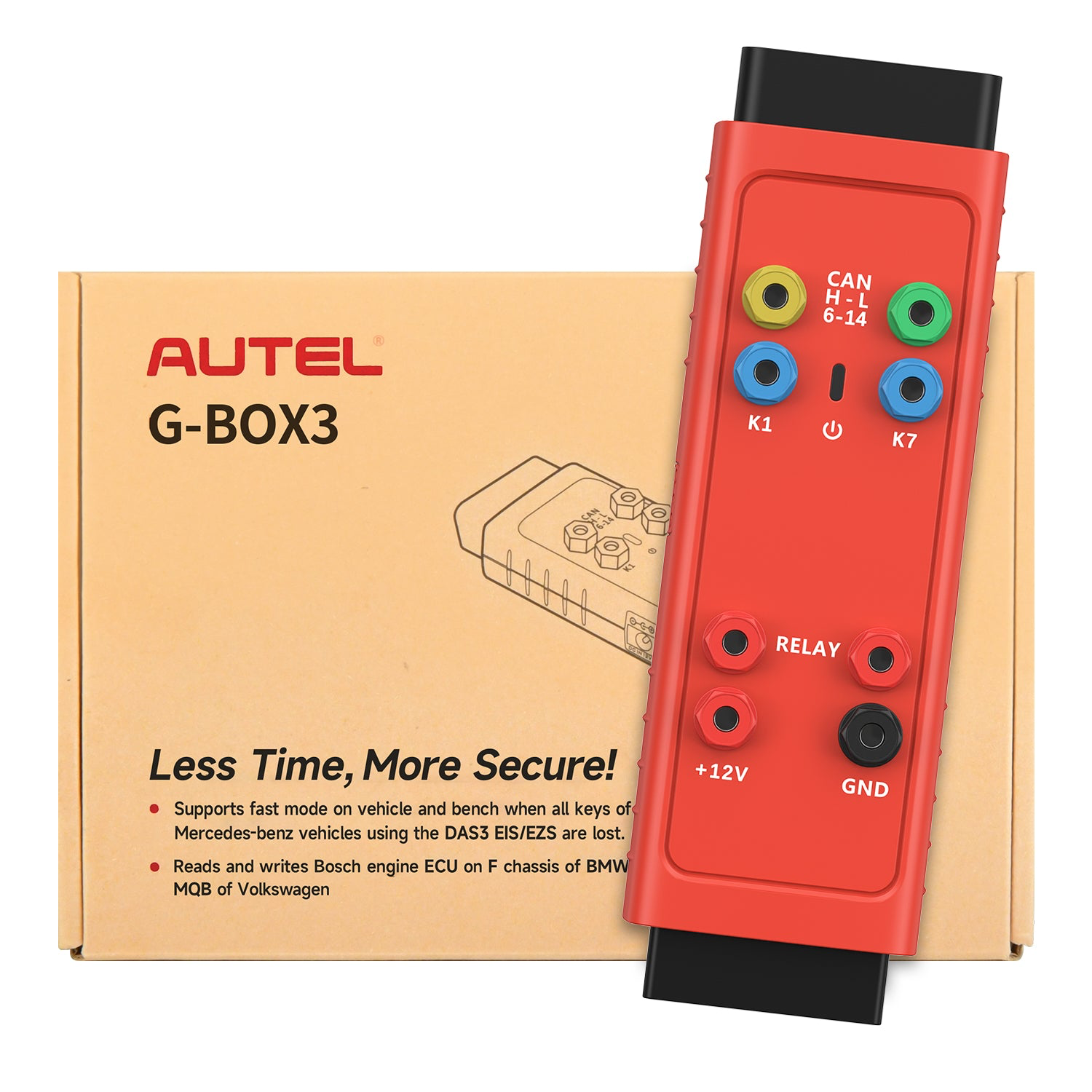

Autel G-BOX3 Details Instruction:

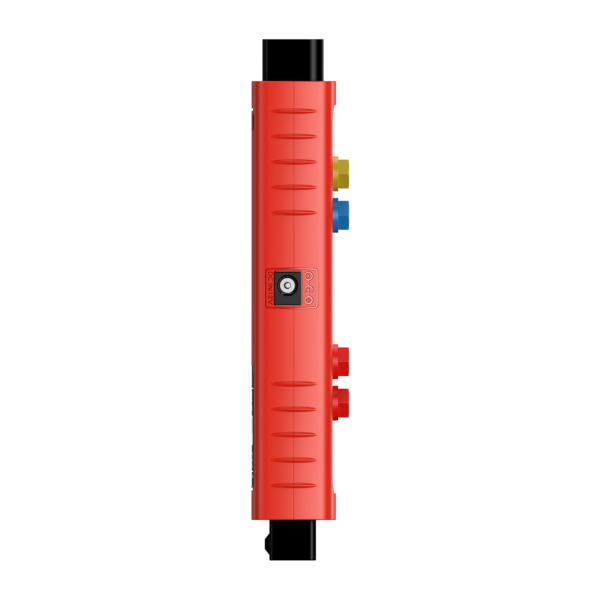

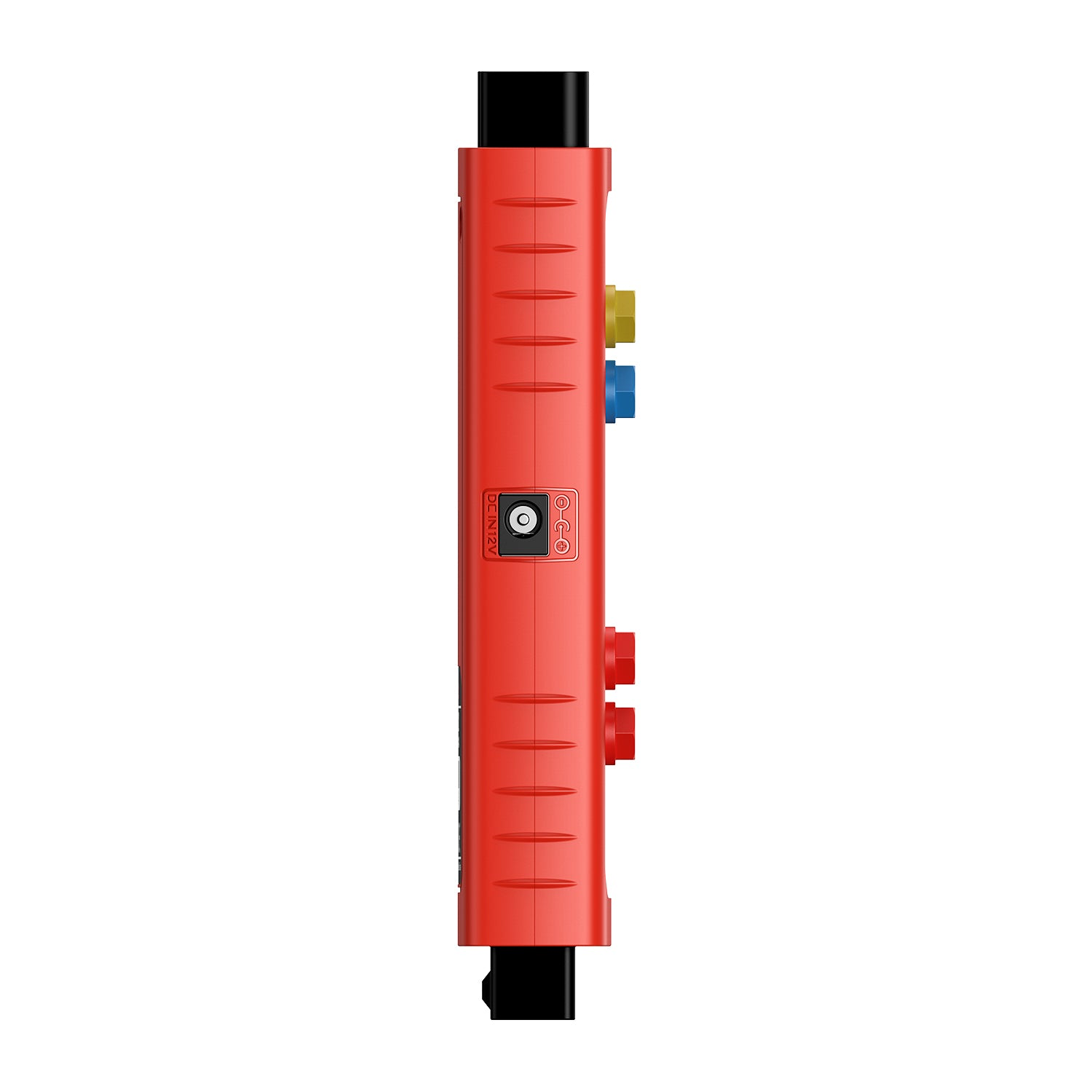

1. DC Port -Provides +12 DV power supply
2. Can-H Port: Universal Can Bus interface, connects with OBDII PIN6
3. K1 Port: Universal K-Line interface, connects with OBDII PIN1
4. Status Indicator: Indicates the current operating status

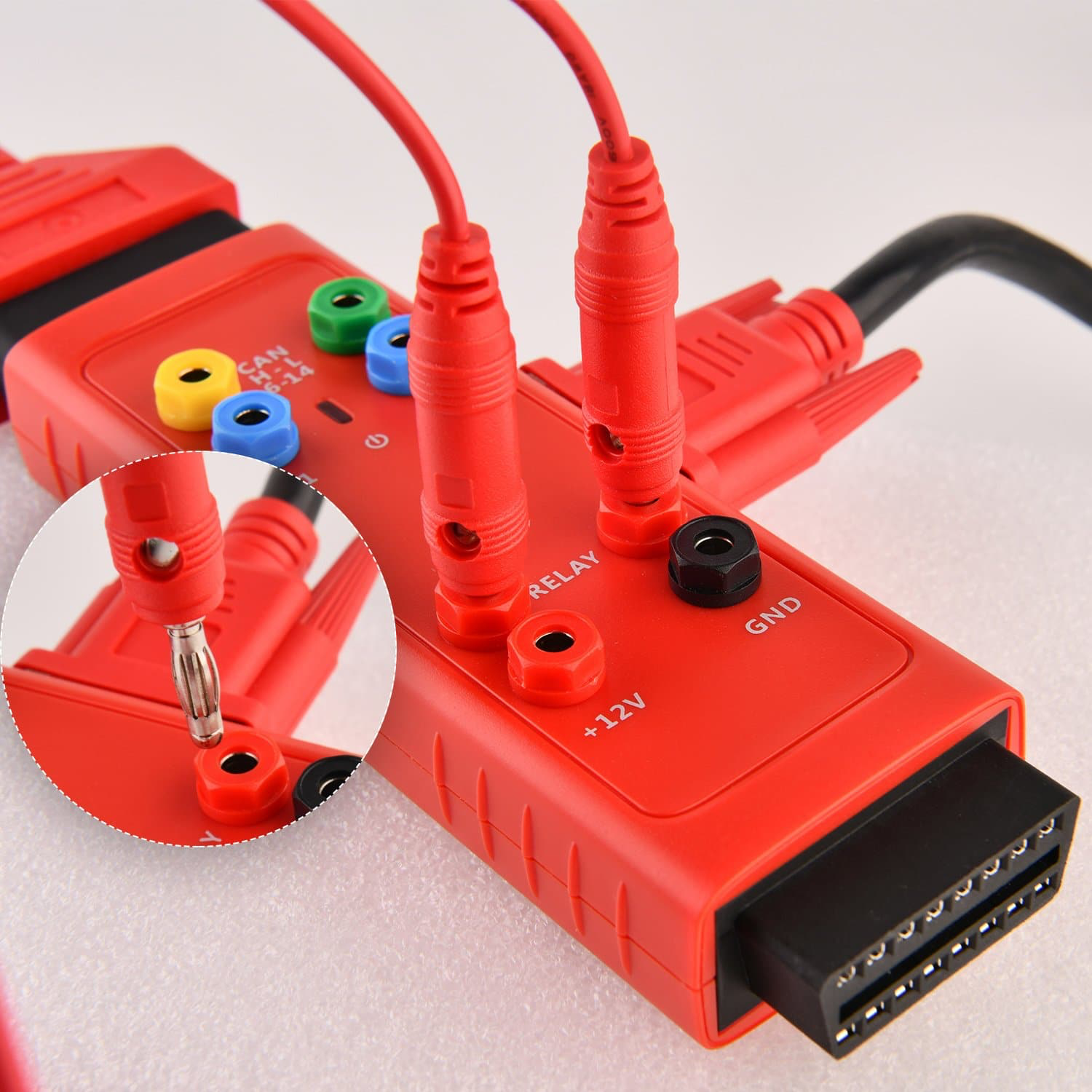

5. Relay Ports: Connect with dedicated relay cables
6. +12V Power Port: Universal power input/ output port
7. OBDII Connector: Connects to the vehicle’s OBDII directly or via a dedicated extension cable
8. OBDII Female Connector: Connects to the main cable of Autel Diagnostic Tool
9. Can-L Port: Universal Can Bus interface, connects with OBDII PIN14
10. K7 Port: Universal K-Line interface connects with OBDII PIN7
11. GND Port: Universal Power Input/ Output Port

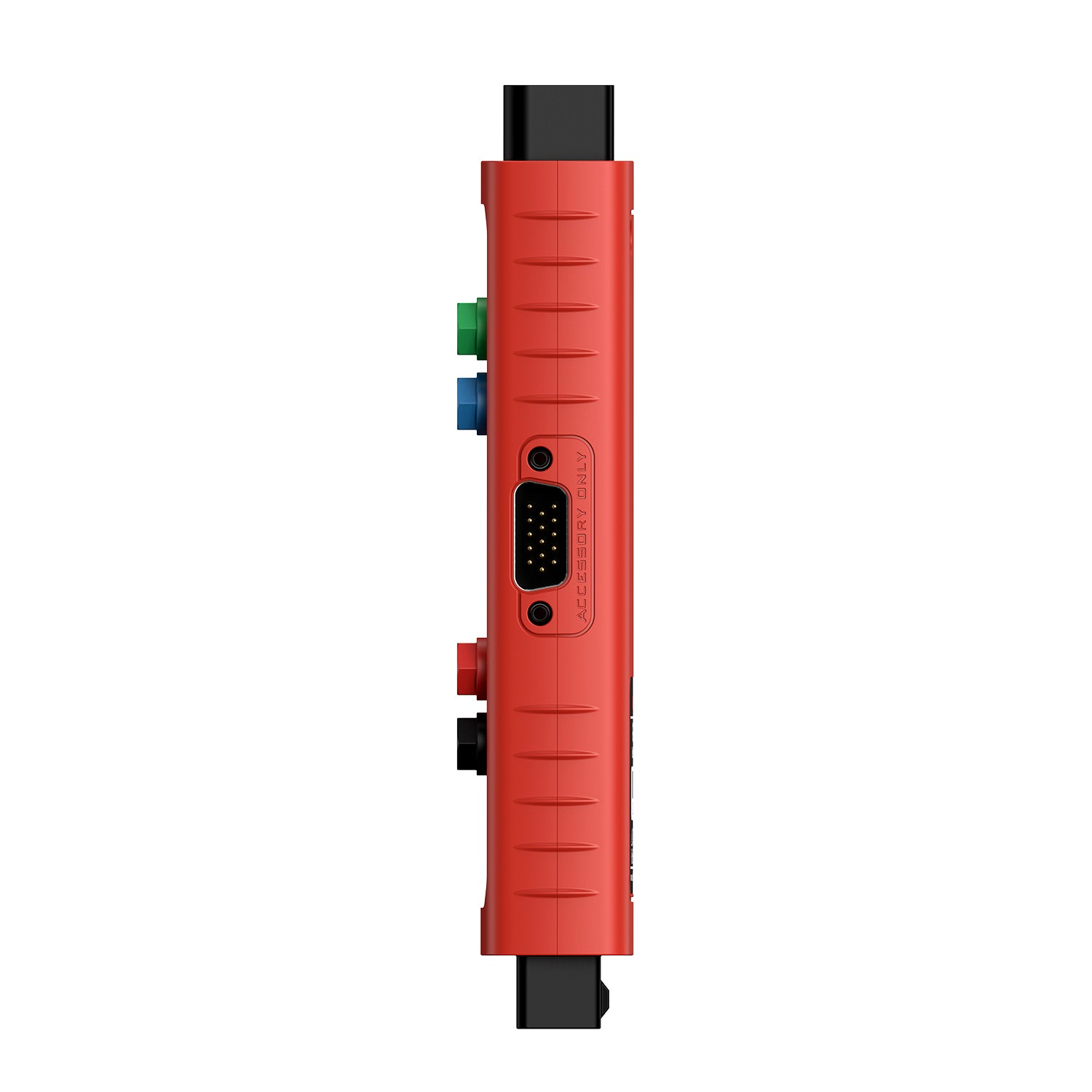

12. OB15 Port: Used with dedicated BD15 Cable for reading and wrting multiple types of ECUs

Why Buy Autel G-BOX3 — Small is Smart!

1. MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION.

• 8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;
• 4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.

2. MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATOR

• W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)

3. MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EIS

• EXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.

4. MERCEDES-BENZ ALL KEYS LOST, BMW DME / DDE ISN READING AND WRITING IN BOOT MODE

• 23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.
