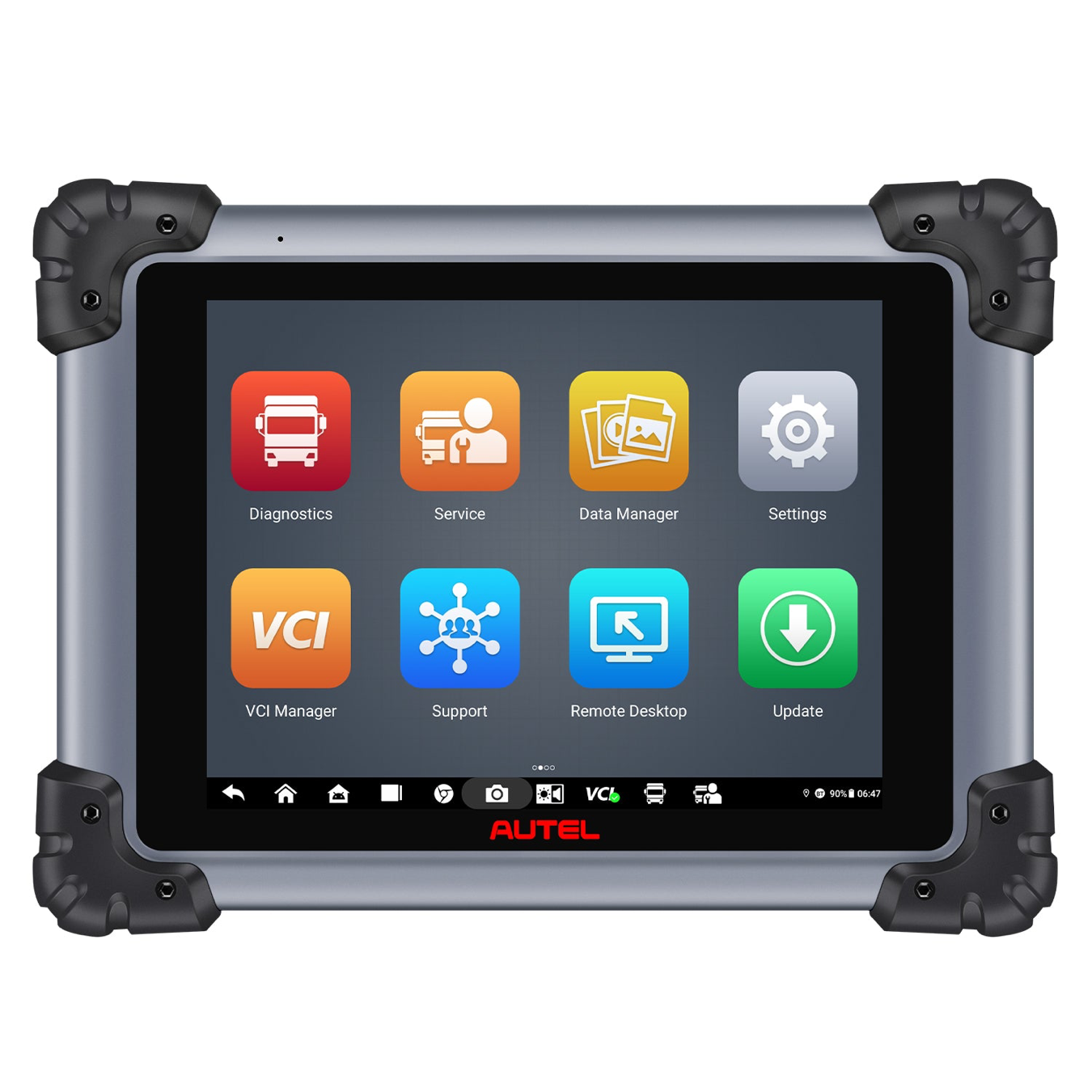

Autel Maxisys MS908CV II Heavy Duty Diagnostic Scanner
Autel Maxisys MS908CV 2024 Heavy Duty Truck Scanner with J2534 ECU Programming, Diesel & Gasoline Scan Tool, Advanced ECU Coding, All System Diagnosis, Active Test, 64+ Service, Upgraded Ver. Of MS908CV
Description
Autel’s latest release for 2025 is the MS908CV II features a complete hardware overhaul, now equipped with the same powerful CPU as the MS909CV. Running on a fast Android 10 operating system, it offers a larger storage capacity of 4+128GB and boasts a long-lasting 11000mAh battery.
With the latest technology and updates, the MS908CV II is designed to handle a wide range of commercial vehicle and heavy-duty applications (class 1-9), ensuring future-proofing power. This heavy-duty truck scanner now offering 64+ services. It also includes an impressive addition of 3000+ active tests, enhancing its ability to perform advanced diagnostics. Furthermore, the MS908CV II has been optimized for multitasking, with enhanced ECU coding and J2534 programming functionalities
- Advanced ECU Coding: Adjust vehicle road speed, flash CV personalized functions, repair failing coding processes, etc
- 64+ Hoe Services: Autel MS908CV II features 39+ services & 25+ adaptions for 150+ brands that are easy to navigate and more outstanding than other CV diagnostic scan tools.
- OE All-System Diagnosis: MS908CV II conducts simplifying all procedures as the priority, runs full checks for complex CV systems like ECAS, ABS/EBS, DPF/SCR, reads DTCs to locate the fault, clears DTCs to turn off the MIL, retrieves live data to learn about the details.
- Active Test: 3000+ active tests act more accurately but quicker problems location without bulky parts disassembling.
- 2025 Top Truck Scanner: Wireless BT with 230+ meters working range. The complete kit provided includes various adapters that are designed for diagnosing aging class-3 CV vehicles
- Wider Coverage: Widely apply to CV vehicles including Light/Heavy duty trucks (class 1-9), trailers, buses, special vehicles, and newly added agricultural & construction vehicles.
- Pre & Post Scan: Pre-Post Scanning will record vehicle status before and after diagnostics, helping you to locate problems and list suitable repair plans.
- Extensive Functions: Auto Scan 2.0, WIFI Print, Cloud Report Management, etc.
- Services for Truck: DPR Regeneration, Injector Cutout Tests, Injector Coding, Oil Light Service, etc.
- 1 Yeas Free Update & Warranty: Scanner comes with one year free software update
Autel MS908CV II Specifications
| Operating System | Android 10 |
| Processor | Octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53) |
| Memory | 4 GB RAM & 128 GB on-board memory |
| Display | 9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution |
| Connectivity | · WiFi (802.11 a/b/g/n/ac) |
| · USB: 2.0 | |
| · Bluetooth v5.0 + EDR | |
| · SD Card (Support up to 64 GB) | |
| · HDMI | |
| Camera (rear) | 16.0 megapixels; auto focus with flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | · Microphone |
| · Dual Speakers | |
| · 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | · 11000 mAh 3.7 V lithium-polymer battery · Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp | -20 °C to 60 °C (-4 °F to 140 °F) |
